Medium Pressure Oil 30' x 1/2" Enclosed Hose reel
Call for price
Click to view California Proposition 65 warning

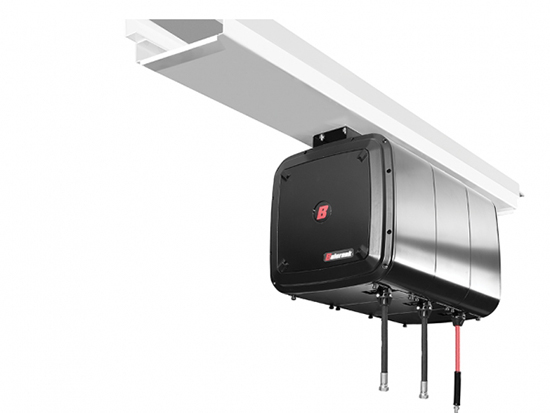

All metal enclosed cabinet hose reels are designed to improve the appearance of any shop.
Standard color is black and six special colors are available to match workbenches, and automotive lifts; white, green, blue, red, silver and yellow.
INCLUDES 30' X 1/2" HOSE
Oil Medium Pressure 3,000 psi (207 bar) for delivery of lubricants
*****
Balcrank recommends using mounting channels or framing strut for installation of these enclosures.
*****
------------
Each reel requires one side enclosure kit (see options) which includes 2 side panels, 1 roller outlet assembly, 1 quick mounting channel and hardware.
Each reel bank requires one end panel kit (see options) which includes 2 end panels, 2 poly end panel inserts, 1 end bar support and hardware. *NOTE: The End Panel Insert (refer to photo) standard color is black. To order a white insert add a “W” to the model number, listed below. example - 2250-003W = kit, end panels green with white end panel insert*
Features
- All steel cabinets have high quality, powder coated finish providing corrosion resistance
- Cabinet design provides smooth and easy operation: prevents hose pinch and reduces wear when pulling from any angle
- Simple installation and serviceability
- Cabinet design ties all reels in the bank together to form one complete rigid structure
- Aluminum end panels with removable poly inserts provides fast and easy serviceability
- OUTLET THREAD - 1/2” NPT (M)
- INLET THREAD - 1/2" NPSM(m)
- MAX WORKING PRESSURE - 2,750PSI
- WETTED MATERIALS : Carbon steel plated & buna-n
Technical
Weight approx. | 37 | lbs |
Power supply | max 2,750 PSI | V/Hz/A |
Dimensions (L x W x H) | 20L x 11W x 19H | inch |
Accessories
44-2230-002 | MOUNTING CHANNEL I-BEAM BRACKET KIT | $91.00 | Add to cart |
44-2230-003 | MOUNTING CHANNEL - 1 REEL | $95.00 | Add to cart |
44-2230-004 | MOUNTING CHANNEL - 2 REELS | $120.00 | Add to cart |
44-2230-005 | MOUNTING CHANNEL - 3 REELS | $152.00 | Add to cart |
44-2230-007 | MOUNTING CHANNEL - 5 REELS | $216.00 | Add to cart |
44-2250-001 | ENCLOSURE END PANELS & HARDWARE KIT - BLACK | $246.00 | Add to cart |
44-2250-002 | ENCLOSURE END PANELS & HARDWARE KIT - WHITE | $246.00 | Add to cart |
44-2250-003 | ENCLOSURE END PANELS & HARDWARE KIT - GREEN | $246.00 | Add to cart |
44-2250-004 | ENCLOSURE END PANELS & HARDWARE KIT - BLUE | $246.00 | Add to cart |
44-2250-005 | ENCLOSURE END PANELS & HARDWARE KIT - RED | $246.00 | Add to cart |
44-2250-006 | ENCLOSURE END PANELS & HARDWARE KIT - SILVER | $246.00 | Add to cart |
44-2250-007 | ENCLOSURE END PANELS & HARDWARE KIT - YELLOW | $246.00 | Add to cart |
