16,000 lbs Heavy-Duty3-Stage Arm 2-Post

Call for price

67-CL16-0-3s
Challenger Lifts

Click to see additional Options / Models / Accessories Available
Options

Request a call

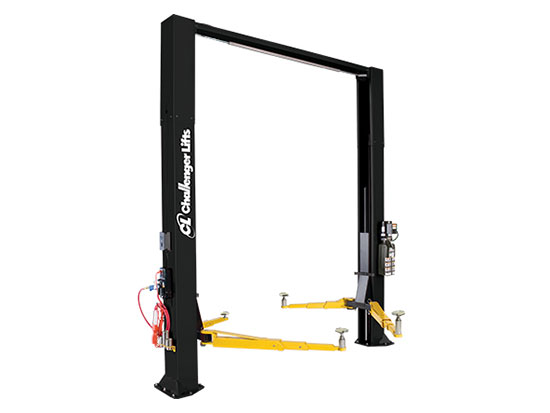

Challenger’s Heavy-Duty 2-Post lifts boast optimum flexibility with a lift designed from the anchors up to meet ALI/ANSI safety standards. These lifts have a capacity of 16,000lbs and can lift everything from compact cars to tall, heavy trucks. All put together, this lift is built to withstand the toughest of fleet maintenance. The CL16-3S has the capacity and height required to symmetrically lift service trucks and 3-stage front and rear arms to lift smaller vehicles asymmetrically. Additionally featuring low profile pickup pads and an adjustable width and height. 2ft height extensions are available for additional clearance.



Features

  • Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
  • Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
  • Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.
  • 60” lifting carriage design increases lift life.
  • Adjustable width and symmetrical design allow easy access to the vehicle’s interior.
  • Dual integrated rubber door guards to prevent door damage.



Technical

Dimensions (L x W x H) 155-167/38/162-174 inch
Dimensions (L x W x H) rubber pad 4.3x4x0.4 inch
Dimensions (L x W x H) carrier 135/38/46 inch
Operating pressure 2250 bar
Extension height 4.75 - 81.5 inch
Power supply 230V/60/19 V/Hz/A
Color red/blue/textured black
Weight approx. 2460 lbs
Lifting/lowering time approx. 62/32 s
Lifting height 69 inch
Lifting-piston diameter 2.5 inch
Motor output 2.21 kW
Effective height 75.5 inch
Oil fill capacity 5.5 gallons
Load carrying capacity 5.5 lbs



Options

67-CL16-2-3s 16,000 lbs Heavy-Duty 3-Stage Arm 2-Post with 2' Height Extensions $21,316.00 Add to cart
