Vehicle Lifts
20,000 lbs Heavy-Duty 2-Post
Call for price
67-CL20

Click to see additional Options / Models / Accessories Available
Options

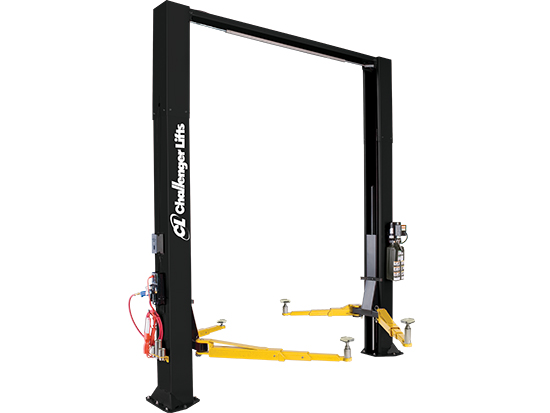

Challenger’s Heavy-Duty 2-Post lifts boast optimum flexibility with a lift designed from the anchors up to meet ALI/ANSI safety standards. These lifts have a capacity of 20,000lbs and can lift everything from compact cars to tall, heavy trucks. All put together, this lift is built to withstand the toughest of fleet maintenance.
Featuring low profile pickup pads and an adjustable width and height, plus 2ft height extensions are available for additional clearance.
Features
- Engineered to be wider, taller, and stronger. Ready to tackle the heaviest vehicles in any fleet.
- Single-point air actuated lock release allows the technician to disengage both columns simultaneously.
- Oversized 5” diameter steel pulley and heavy-duty 3/8” cable reduces stress on equalization system and increases cable life.
- 60” lifting carriage design increases lift life.
- Adjustable width and symmetrical design allow easy access to the vehicle’s interior.
- Dual integrated rubber door guards to prevent door damage.
Technical
Dimensions (L x W x H) | 155-167/38/162-174 | inch |
Dimensions (L x W x H) rubber pad | 4.3x4x0.4 | inch |
Dimensions (L x W x H) carrier | 135/38/46 | inch |
Operating pressure | 2650 | bar |
Extension height | 6.2 - 84.5 | inch |
Power supply | 230V/60/22 | V/Hz/A |
Color | red/blue/textured black | |
Weight approx. | 2660 | lbs |
Lifting/lowering time approx. | 62/27 | s |
Lifting height | 69 | inch |
Lifting-piston diameter | 2.5 | inch |
Motor output | 2.21 | kW |
Effective height | 76.5 | inch |
Oil fill capacity | 5.5 | gallons |
Load carrying capacity | 20,000 | lbs |
Options
67-CL20-2 | 20,000 lbs Heavy-Duty 2-Post with 2' Height Extensions | $26,037.00 | Add to cart |
