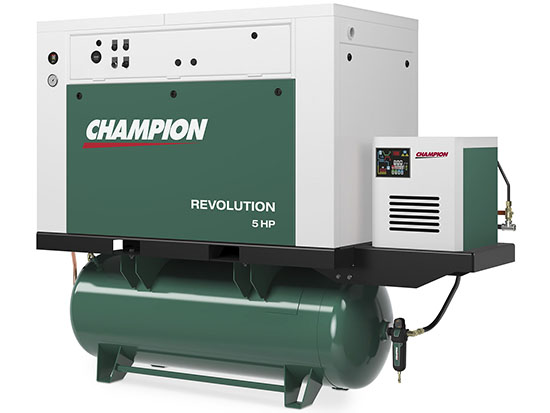

Revolution Reciprocating Quiet Enclosed Model HQR5-8 - 5HP, 230/3 Phase on an 80 Gallon Horizontal Tank With Mounted XCNC Dryer and 3 Way Bypass.



Features

• Utilizes Champion flagship R-Series compressor pump.
• Sound attenuating enclosere and bottom intake and dicharge result in remarkably low dBA levels.
• Sophisticated control panel design that includes fault and power-on light, hour meter and ON/OFF switch as standard.
• Air-Intake Pre-filter.
• Efficient bar and plate after-cooler - results in very low approach temperatures less than 20 degrees Fahrenheit.
• Large CFM cooling fan provides optimum airflow and cooler temperatures.
• Mounted XCNC dryer, bypass and pre-filter eliminates the need for additional space and plumbing for dryer as well as lower installation costs.



Technical

Dimensions (L x W x H)	86x32x64	inch
Power consumption	60 Hertz	kW
Power supply	230/3 phase	V/Hz/A
Weight approx.	1401	lbs



Options

27-HQR58-208-1D	Revolution Reciprocating Quiet Enclosed Model HQR5-8 - 5HP, 208/1 Phase on an 80 Gallon Horizontal Tank With Mounted XCNC Dryer	$9,404.00	Add to cart
27-HQR58-208-3D	Revolution Reciprocating Quiet Enclosed Model HQR5-8 - 5HP, 208/3 Phase on an 80 Gallon Horizontal Tank With Mounted XCNC Dryer	$9,404.00	Add to cart
27-HQR58-230-1D	Revolution Reciprocating Quiet Enclosed Model HQR5-8 - 5HP, 230/1 Phase on an 80 Gallon Horizontal Tank With Mounted XCNC Dryer	$9,404.00	Add to cart
27-HQR58-460-3D	Revolution Reciprocating Quiet Enclosed Model HQR5-8 - 5HP, 460/3 Phase on an 80 Gallon Horizontal Tank With Mounted XCNC Dryer	$9,404.00	Add to cart
