Zephyr Downdraft Paint Spray Booth

Call for price

280-ZEPHYR
Garmat USA, Inc.

Click to see additional Options / Models / Accessories Available
Accessories

Request a call



Designed for high output, this full downdraft paint spray booth features Garmat's exclusive fan design and horizontally-mounted lighting package. Can be customized for any building constraint.



Features

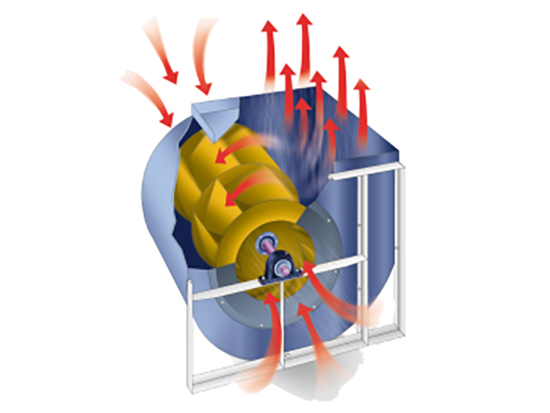

  • Garmat's exclusive Dual Inlet Reverse Incline Centrifugal Fan on exhaust and Dual Inlet Forward Curve Centrifugal Fan on intake, providing the highest performance and best energy efficiency.
  • Horizontally-mounted light fixtures placed above and below the belt line for optimal and virtually shadow-free illumination.
  • Interior accessible four-tube light fixtures complete with T8 5000k color-corrected tubes.
  • ETL-listed cabin constructed of dual skin white powder-coated galvanized steel, fully insulated with solid horizontally-installed interlocking wall panels
  • ETL-listed industrial PLC control panel and mechanical, designed by Garmat to maximize efficiency.
  • Standard heated AMU features 80% recycle heated air in bake cycle for greater energy efficiency.
  • Single row pit with galvanized steel grates that are both heavy-duty and lightweight.
  • 6H Compliant.
  • 12,000 CFM / Intake 7.5 hp / Exhaust 7.5 hp.
  • Stainless Steel Direct Fired Burner: 840,000 BTU.
  • VFDs and Soft Starts Available.
  • Customizable for building constraints.



Accessories

280-30307-G Upgraded Frontal $0.01 Add to cart
280-99397-42V Paint Booth Cabin Upgrade - Rounded Corners with Blowers $0.01 Add to cart
280-99837-42 Paint Booth Cabin Upgrade - Rounded Corners $0.01 Add to cart
280-ACCELE Accele-cure® Air Accelerator System $0.01 Add to cart
280-BLOWER-H Horizontally Mounted Blower System $0.01 Add to cart
280-BLOWER-V Vertically Mounted Blower System $0.01 Add to cart
280-Dolly Low-Profile Car Dolly for Track System $0.01 Add to cart
280-Door Retrofittable Frontals - update your existing cabin with new doors $0.01 Add to cart
280-LitHeader Garmat Back Light Header $0.01 Add to cart
280-M041001 Hose Trolley $1,508.00 Add to cart
280-SideloadSystem Sideload Track System $0.01 Add to cart
