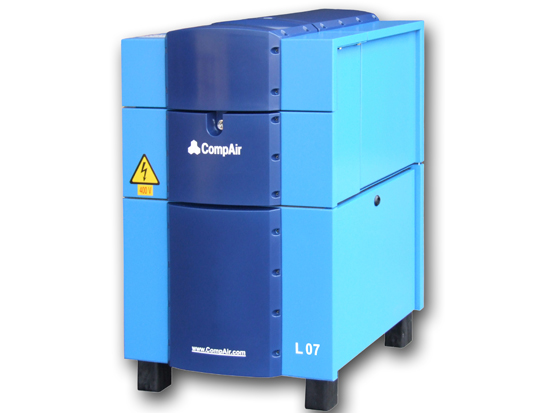

Champion 10HP, Rotary Screw Fixed Speed Compressor, 100 PSIG, 208-230/460/3/60

Call for price

27-L07AC100TV
Champion

Click to see additional Options / Models / Accessories Available
Accessories

Request a call



The L Series oil-injected rotary screw compressors provide a range that combines high performance, low operating costs and reliability with ease of installation and servicing. Industries both large and small rely on Champion rotary screw compressors for a constant supply of high-quality compressed air. Specifications and Features: 10HP Pressure at 100 psig 44.5 CFM at 100 psig Fixed Speed Base Mounted 2-Year Warranty Factory Filled with CompLube 8000



Features

  • Compact design which gives you a small footprint.
  • TEFC High Efficiency Motor.
  • Quiet Enclosure to reduce sound levels.
  • Wye/Delta Starter.
  • Delcos Microprocessor based control system.
  • Automatic belt tensioning system.



Technical

Weight approx. 452 lbs
Power supply 208-230, 460 / 60 / 3ph V/Hz/A
Dimensions (L x W x H) 27 x 25 x 41 inch



Accessories

27-28H369 CompLube 8000 advanced, synthetic lubricant for CompAir rotary screw compressors -- 2.5 Gallon $554.00 Add to cart
27-28H388 CompLube 8000 advanced, synthetic lubricant for CompAir rotary screw compressors $900.00 Add to cart
27-PA204-2209 CompAir L07-L11 Platinum Warranty Kit $451.00 Add to cart
