Compressed Air Systems

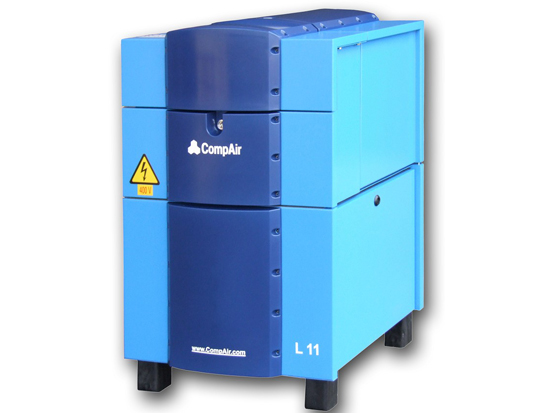

Champion 15HP, Rotary Screw Fixed Speed Compressor, 100 PSIG, 208-230/460/3/60
Call for price
27-L11AC100TV
Click to see additional Options / Models / Accessories Available
Accessories
The L Series oil-injected rotary screw compressors provide a range that combines high performance, low operating costs and reliability with ease of installation and servicing. Industries both large and small rely on Champion rotary screw compressors for a constant supply of high-quality compressed air.
Specifications and Features:
15HP
Pressure at 100 psig
63.1 CFM at 100 psig
Fixed Speed
Base Mounted
2-Year Warranty
Factory Filled with CompLube 8000
Features
- Compact design which gives you a small footprint.
- TEFC High Efficiency Motor.
- Quiet Enclosure to reduce sound levels.
- Wye/Delta Starter.
- Delcos Microprocessor based control system.
- Automatic belt tensioning system.
Technical
| Weight approx. | 483 | lbs |
| Power supply | 208-230/460V/60Hz/3ph | V/Hz/A |
| Dimensions (L x W x H) | 27 x 25 x 41 | inch |
Accessories
| 27-28H369 | CompLube 8000 advanced, synthetic lubricant for CompAir rotary screw compressors -- 2.5 Gallon | $554.00 | Add to cart |
| 27-28H388 | CompLube 8000 advanced, synthetic lubricant for CompAir rotary screw compressors | $900.00 | Add to cart |
| 27-PA204-2209 | CompAir L07-L11 Platinum Warranty Kit | $451.00 | Add to cart |
