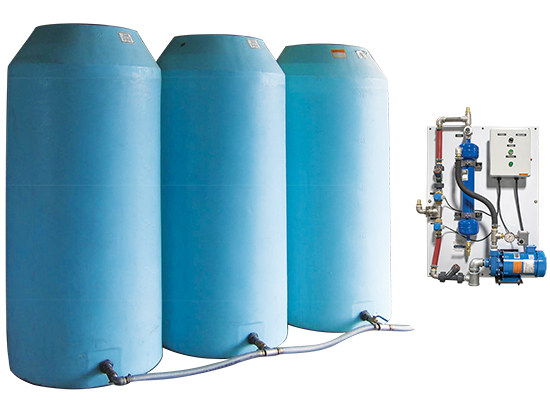

Broadway's Hydro Filter 25 Water Reclaim System is designed for automatic car wash bays that handle up to 200 cars per day. Filter bags have been added to the system to improve water filtration, removing particles down to 25 microns in size. The pump is designed to provide 55 gallons per minute at 40 psi, allowing this reclaim system to be used on both rollover setups and drive thru tunnel setups. The removable, disposable bag filters provide an easy and cost effective means of water filtration. This unit is designed for an inbay installation or an equipment room setup. Simple maintenance makes this system easy to operate while producing the quality of water needed for highter volume car wash systems.
NOTE: Requires underground water trap system. Contact us for blueprints. Local contractor will need to install and plumb underground holding tanks.
The system reduces water consumption by approximately 75%, significantly lowering operating costs. Water is pumped from the last compartment of the underground settling tank through a cyclone separator to remove suspended solids.
Washes with reused water and rinses with fresh water.
Features
- Designed For: Inbay automatics, tunnel systems.
- Separation Method: Cyclone separator and fabric bag filters.
- Water Clarity: 25 Microns.
- Ideal Wash Volume: 200 Cars per day.
- Basic Requirements: 3 Phase, 20 Amps, 208/230 or 460 Volt, 1" City Water Line, 40 G.P.M. at 40 P.S.I.
- Water Volume: 55 Gallons per minute at 40 P.S.I.
