Wheel Alignment
Scissor Lift, surface mount, 10,000lb capacity, 161" WB capacity, (2) 6,000lb Swing Jacks, stainless turnplates.
Login for special pricing
Login for special pricing
1-RX10K
Large Capacity with a Small Footprint, 24" Wide Runways, Best in Class Drive On Height, Stainless Steel Turnplates, Integrated Air Line, Sensor Feedback System, Velocity Safety Fuses, 2 Swing Air Jacks, Louvered Ramps, Safety Lock, Movable Work Steps.
Features
- Fast descent speed -50% faster lowering times & Ensures a soft landing by automatically slowing the last several inches.
- Swing Air Jacks - 6,000 lb. capacity, Lift vehicles off the runways during alignment procedures and other multi-service operations, and the Folding design provides lowest-profile .
- FIA allows WinAlign® aligners to control the lift features for ultimate productivity.
- Two patented designs offer greater flexibility and timesaving capabilities.
- Standard Equipment
- Stainless steel turnplates
- Flush-mounted, full-floating slipplates (PowerSlide® slipplates on PS and IS models)
Technical
Max Wheel Base | 184/180 | inch |
Weight approx. | 5482 | lbs |
Above ground or inground | Above | |
Power supply | 220V,1ph, 7A,NEMA L6-20P | V/Hz/A |
Dimensions (L x W x H) | 192 x 35 x 54 | inch |
ALI Certified | Yes |
Options
1-RX10KBLK | Black Scissor Lift, surface mount, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates. | Login for special pricing | Add to cart |

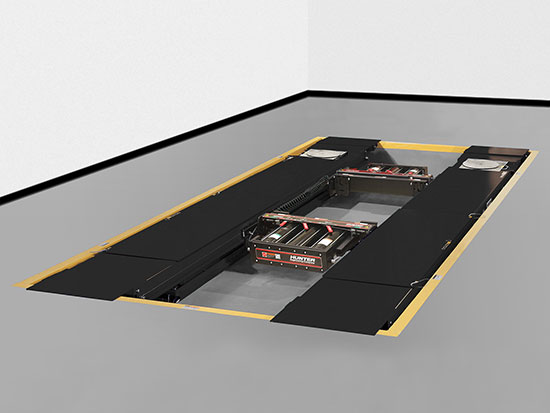

1-RX10KF | Scissor Lift, flush mount, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates. | Login for special pricing | Add to cart |
1-RX10KFBLK | BlackScissor Lift, flush mount, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, stainless turnplates. | Login for special pricing | Add to cart |
1-RX10KFIS | Scissor Lift, flush mount, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, PowerSli | Login for special pricing | Add to cart |
1-RX10KFISBLK | BLK Scissor Lift, flush mount, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 161" 2WA WB, (2) 6,000lb Swing Jacks, Powe | Login for special pricing | Add to cart |
1-RX10KFPS | Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates. | Login for special pricing | Add to cart |
1-RX10KFPSBLK | Black Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates. | Login for special pricing | Add to cart |
1-RX10KIS | Scissor Lift, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates | Login for special pricing | Add to cart |
1-RX10KISBLK | Blk Scissor Lift, FIA, Inflation Station, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnpl | Login for special pricing | Add to cart |
1-RX10KPS | Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates | Login for special pricing | Add to cart |
1-RX10KPSBLK | Black Scissor Lift, FIA, PowerSlide, 10,000lb capacity, 166" 2WA WB, (2) 6,000lb Swing Jacks, PowerSlide turnplates | Login for special pricing | Add to cart |
Accessories
1-147-113-1-ppp | Long RX Approach Ramp Extension (Two Required) | Login for pricing | Add to cart |
1-20-2189-1BLK | Stage 2 RX Approach Ramps - 50" long extended approach ramps for all RX models. Black | Login for pricing | Add to cart |
1-20-2395-1BLK | Black, Kit-50mm Filler Plate - Fits into turnplate pockets when turnplates are not used. 19.5" wide. | Login for pricing | Add to cart |
1-20-2497-1 | RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications | Login for pricing | Add to cart |
1-20-2497-1BLK | Black, RX16, RX12A, and RX10 series Conventional Sensor Extension Kit for Surface-Mount Applications | Login for pricing | Add to cart |
1-20-2498-1 | RX16, RX12A, and RX10 series Drive-Through Kit | Login for pricing | Add to cart |
1-20-2498-1BLK | RX16, RX12A, and RX10 series Drive-Through Kit | Login for pricing | Add to cart |
1-20-2532-1 | 14" Convertible Turnplates Kit, Stainless Steel | Login for pricing | Add to cart |
1-20-2533-1 | 14" Convertible Turnplates Kit - Low Friction, Stainless Steel | Login for pricing | Add to cart |
1-20-2736-1BLK | Black RX10, 12A, 16 Flush Conversion Kit. Ramps and extenders to convert a surface mount rack to flush mount. | Login for pricing | Add to cart |
1-20-2842-1 | Rubber Wheel Chock Kit | Login for pricing | Add to cart |
1-20-3113-1 | RX ramp extension kit -Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12 | Login for pricing | Add to cart |
1-20-3113-1BLK | Blk, RX ramp extension kit -Adds 17.75" to the length of RX9, RX10 and RX16; or 5" to RX-12 | Login for pricing | Add to cart |
1-20-3438-1 | RX light kit for K model racks. | Login for pricing | Add to cart |
1-20-3855-1 | Kit-Wired FIA Harness & Cable for RX Racks | Login for pricing | Add to cart |
1-22-525-2 | Angle - Rubber Wheel Chock | Login for pricing | Add to cart |
1-51-1696-1 | Clip-on Moveable Workstep | Login for pricing | Add to cart |
1-PACKAGING | Wood Packaging to protect Lift Racks during shipping (required for shipments to Alaska/Hawaii only) | Login for pricing | Add to cart |
