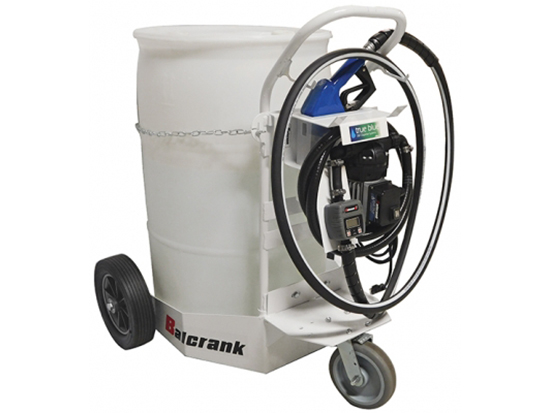

Closed Electric Diaphragm Drum Pump package- DEF - portable

Call for price

44-1210-053P
Balcrank Corporation

Request a call



Click to view California Proposition 65 warning



CLOSED system containers have a valve coupling system that seals the container opening on drums and totes, Intermediate Bulk Container (IBC), to prevent dirt, debris, bugs etc. from entering the container and contaminating the diesel exhaust fluid. Liquid in container system is sealed and secure, throughout container life cycle. For closed systems, use Reusable Poly Valve (RPV) or Reusable Stainless Valve (RSV) systems accessories. RSV and RPV components are interchangeable - see accesories DEF Drum Systems provide portability for many shops. This outfit includes: Electric diaphragm pump 12 V DC Side mount bracket Fluid Hose - Discharge (20’ x 3/4”) Fluid Hose - Suction (6’ x 3/4”) Nozzle, Auto Shut-off, Stainless Steel Drip Tray DEF Meter DR Style Drum Cart 55 Gal - DEF NOT included: Hardware such as wall mounting hardware (nuts, bolts, and anchors) Drum



Features

  • Max. free flow - 9.5 GPM
  • Working pressure - 23 psi
  • Wetted materials (pump) - stainless steel, Viton, PPE
  • Compact design mounting bracket
  • Heavy-duty cart easily holds and rolls up to 55 gallon drum
  • Large semi-pneumatic tires allow for easy maneuvering of cart
  • Large, non-marking caster - built in brake for safe and secure dispensing



Technical

Dimensions (L x W x H) 36 x 33.5 x 43.5 inch
Power supply 12 V DC V/Hz/A
Weight approx. 152 lbs
