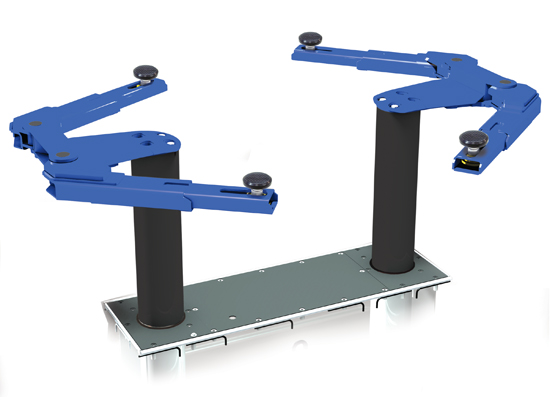

12,000 lb. wide in-ground SmartLift with truck adapters, Shockwave equipped, with bench control configuration. 88" of drive-through clearance.



Features

• 12,000 lb. lifting capacity.
• 88" of drive-thru clearance, ideal for EV battery removals.
• Trio arm configuration with truck adapters, ideal for lifting vehicles on frames.
• Environmentally responsible with secondary polymer containment for below-ground components.
• Shockwave equipped with DC power and 25 second rise time.
• Bench mounted control configuration including housing for batteries.
• All internal components are serviceable from floor level for quick repairs.
• 71” cylinder stroke at full rise.
• 110v for powering on board battery charger.



Technical

Drive-over height	4-3/4"	inch
Load carrying capacity	12,000	lbs
Support piston diameter	8"	inch
Piston spacing	88"	inch
Lifting-piston diameter	8"	inch
Lifting height	71"	inch
Lifting/lowering time approx.	25/19	s
Weight approx.	2283 lbs.	lbs
Color	Red, blue or black
Power supply	110v/60Hz/5 amps	V/Hz/A
Dimensions (L x W x H)	120" x 88" x 4-3/4"	inch
