Compressed Air Systems
Champion 30HP, Rotary Screw Fixed Speed Compressor, 100 PSIG, 208-230/460/3/60
Call for price
27-L22AC100TV
Click to see additional Options / Models / Accessories Available
Accessories

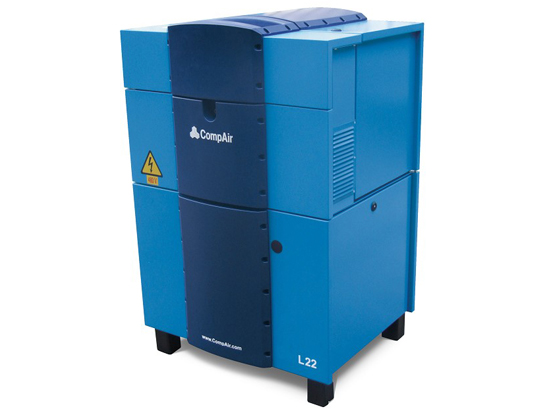

The L Series oil-injected rotary screw compressors provide a range that combines high performance, low operating costs and reliability with ease of installation and servicing. Industries both large and small rely on Champion rotary screw compressors for a constant supply of high-quality compressed air.
Specifications and Features:
30HP
Pressure at 100 psig
125.8 CFM at 100 psig
Fixed Speed
Base Mounted
2-Year Warranty
Factory Filled with CompLube 8000
Features
- Compact design, which gives you a small footprint.
- TEFC High Efficiency Motor.
- Quiet Enclosure to reduce sound levels.
- Wye/Delta Starter.
- Delcos Microprocessor based control system.
- Automatic belt tensioning system.
Technical
| Dimensions (L x W x H) | 31 x 28 x 47 | inch |
| Weight approx. | 810 | lbs |
| Power supply | 208-230, 460 / 60 / 3ph | V/Hz/A |
Accessories
| 27-28H369 | CompLube 8000 advanced, synthetic lubricant for CompAir rotary screw compressors -- 2.5 Gallon | $554.00 | Add to cart |
| 27-28H388 | CompLube 8000 advanced, synthetic lubricant for CompAir rotary screw compressors | $900.00 | Add to cart |
| 27-PA204-2161-1 | CompAir L15-L22 Platinum Warranty Kit | $482.00 | Add to cart |
